The LINE-X Equipment and How it's Done
Easiest to use… most reliable system.

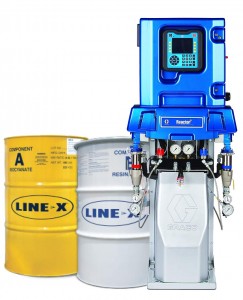

The LINE-X equipment is a high-pressure heated system. The equipment pressurises the liquid components and heats them, separately. Then through heated hoses, the material is brought together at the very tip of the gun.
If you provide the workshop, we'll provide the necessary equipment, training and support that will put you in business today. Our LINE-X package includes the speciality equipment necessary to run a successful business. The gun is very simple to use — just trigger the gun and it sprays. Let go of the trigger and it stops. There is no flushing or purging of the lines or gun because the materials are kept separate.
How It's Done
It's like a flexible plastic coating, but spray applied, far tougher than most other protective coatings and has a quick set time. LINE-X can be sprayed at any desired thickness, from 1mm to 10mm and beyond. LINE-X exhibits one of the highest tensile strengths, one of the highest tear strengths, and one of the highest abrasion resistances of most other spray-on coatings available. LINE-X is a two-part polyurethane elastomer system, using equal parts of an 'A' component (hardener) and a 'B' component (resin). When combined properly it produces a polyurethane elastomer similar to the bottom of a work boot. The two liquid components are brought together at the tip of the spray gun using special equipment, and LINE-X cures or 'sets up' in 3 to 5 seconds, giving it an immediate set time. For an idea of application time, it takes about 3 hours for one experienced person to complete an over-the-rail truck application, including masking and surface preparation. The truck is ready for immediate use, even in the rain or cold, without affecting the material.
LINE-X Spray Machine Requirements
- Air pressure requirements: only 100 psi, 20 cfm (10 hp air compressor)
- No solvent use, making us very environmentally safe
- No flushing or purging required
- Product versatility
- No VOCs or CFCs, 100% solids
Why LINE-X
- 100% bond to virtually any surface
- Dries the fastest – easier to apply
- Faster turnaround time
- Best looking
- Environmentally safe – no VOCs or CFCs, 100% solids
